What Are Plastic Office Chairs Made Of?

Plastic office chairs are usually made from several different materials rather than one type of plastic.

A typical office chair may contain PP, ABS, nylon, glass fiber reinforced plastics, polyurethane foam, mesh fabric, steel and aluminum.

The plastic material depends on the function of each component.

For example, a chair backrest may need good flexibility and surface appearance, while a five-star base needs much higher strength and stiffness.

For injection mould manufacturers, choosing the right plastic material is important because the material also affects mould design, shrinkage, cooling, warpage, surface texture and part dimensions.

1. Polypropylene (PP)

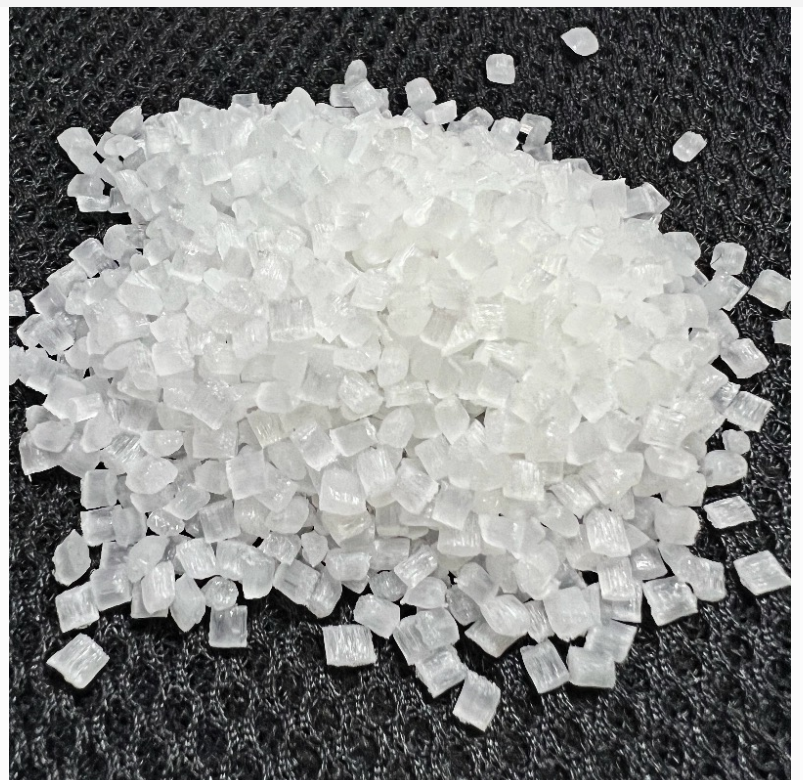

Polypropylene, or PP, is one of the most commonly used plastics for office chair components.

It has several advantages:

• Lightweight

• Good chemical resistance

• Good impact resistance

• Relatively low material cost

• Easy injection moulding

• Good fatigue resistance

PP can be used for:

• Chair seats

• Backrest frames

• Armrest components

• Plastic covers

• Structural furniture parts

For many general-purpose office chairs, PP provides a good balance between performance and cost.

However, standard PP may not provide enough stiffness for heavily loaded structural components.

In these cases, reinforced PP can be considered.

2. Glass Fiber Reinforced PP

Glass fiber reinforced PP, often called GFPP, is PP containing glass fibers.

The glass fibers improve the stiffness and strength of the material.

GFPP can be considered for components such as:

• Five-star chair bases

• Structural seat frames

• Backrest frames

• Load-bearing plastic components

Compared with standard PP, GFPP generally provides better rigidity and dimensional stability.

However, it also creates additional challenges during injection moulding.

Glass fiber can affect:

• Material flow

• Shrinkage

• Fiber orientation

• Warpage

• Surface appearance

• Mould wear

Therefore, the mould design should be developed according to the actual GFPP grade rather than treating it exactly like standard PP.

3. ABS

ABS (Acrylonitrile Butadiene Styrene) is another plastic used for office chair components.

ABS is known for:

• Good surface appearance

• Good dimensional stability

• Good impact resistance

• Easy processing

• Good texture reproduction

It is often suitable for visible components where appearance is important.

Examples include:

• Chair covers

• Armrest components

• Mechanism covers

• Decorative plastic parts

• Control housings

Compared with PP, ABS generally has a different balance of stiffness, impact resistance and surface appearance.

The final choice depends on the product design and application.

4. Nylon / Polyamide (PA)

Nylon, also known as polyamide or PA, is used when higher mechanical performance is required.

Common grades include:

• PA6

• PA66

• Glass fiber reinforced PA6

• Glass fiber reinforced PA66

Nylon can provide good:

• Strength

• Stiffness

• Wear resistance

• Heat resistance

It can be used for certain structural office chair components, especially parts exposed to higher loads or repeated movement.

For example, some chair bases and mechanical plastic components may use reinforced nylon.

However, nylon absorbs moisture, so material storage and processing conditions need to be properly controlled.

5. Polyurethane Foam

Not every part of an office chair is made from injection-moulded plastic.

The seat and backrest often contain polyurethane foam (PU foam).

The foam provides cushioning and comfort.

A typical upholstered office chair may have:

Plastic frame → Foam → Fabric or leather

The plastic frame provides structural support, while the foam provides comfort.

This is why the final office chair is usually a combination of several different materials.

6. Plastic Mesh Materials

Modern ergonomic office chairs often use mesh instead of foam and fabric.

The mesh is normally made from synthetic fibers or polymer-based materials.

A mesh chair may have:

• Plastic back frame

• Mesh fabric

• Plastic support structure

• Lumbar support

• Metal connecting components

The plastic back frame must be rigid enough to hold the mesh under tension.

This is one reason material selection becomes important when designing ergonomic chair backrest moulds.

7. TPE and Other Soft Plastics

Some office chair components need a soft or flexible surface.

Materials such as TPE can be used for:

• Armrest pads

• Grip surfaces

• Buttons

• Adjustment handles

• Decorative soft-touch components

TPE can provide a softer feeling compared with hard plastics.

In some products, a soft material may be moulded over a harder plastic substrate. This is commonly known as two-material or overmoulding.

Which Plastic Is Best for an Office Chair?

There is no single plastic that is best for every office chair component.

The material should be selected according to the part's function.

The actual material may vary between manufacturers and chair models.

What Should Be Considered When Choosing Plastic?

For an office chair manufacturer, material selection should not be based only on price.

Several factors need to be considered.

Strength

Load-bearing components need sufficient strength for the intended application.

Stiffness

A chair base or backrest frame should not deform excessively under normal use.

Impact Resistance

Components may experience impacts during transportation, assembly and everyday use.

Dimensional Stability

Parts must maintain accurate dimensions so they can be assembled with screws, metal brackets, shafts and other components.

Surface Appearance

Visible chair parts may require a smooth surface, leather texture, fine sand texture or another decorative finish.

Cost

For large-volume production, material cost can have a significant effect on the final product cost.

Injection Moulding Performance

The material should be compatible with the part geometry and injection moulding process.

How Plastic Material Affects Office Chair Mould Design

The choice of plastic material also affects the injection mould.

For example, PP, ABS and glass fiber reinforced materials do not behave exactly the same way during injection.

The mould designer needs to consider:

• Material shrinkage

• Flow direction

• Gate position

• Cooling system

• Ejection

• Warpage

• Weld lines

• Rib design

• Wall thickness

• Surface texture

For large office chair components, these factors can have a significant effect on final part quality.

Why Is Moldflow Analysis Useful?

For large or complicated office chair components, Moldflow analysis can help engineers understand how the material will fill the mould.

It can be used to evaluate:

• Filling time

• Flow pattern

• Weld-line locations

• Air traps

• Pressure requirements

• Cooling behavior

• Predicted shrinkage

• Potential warpage

This is especially useful for large seat frames, backrest frames and five-star chair bases.

By identifying potential problems before machining the mould, engineers can make changes to the gate, cooling channels or part structure at an earlier stage.

Plastic Office Chair Manufacturing Process

A typical plastic chair component goes through the following process:

Product Design → Material Selection → DFM Analysis → Moldflow Analysis → Mould Design → Steel Machining → Mould Assembly → Trial Injection → Part Inspection → Mass Production

The moulded plastic part then goes through the chair assembly process.

For example:

Plastic Backrest Frame + Mesh + Lumbar Support + Metal Bracket → Office Chair Backrest Assembly

The final quality therefore depends not only on the mould but also on the relationship between the plastic part and the other components.

Common Problems With Plastic Office Chair Parts

Warpage

Large plastic parts can deform during cooling because of uneven shrinkage.

Sink Marks

Thick ribs and bosses may create sink marks on the visible surface.

Weld Lines

Weld lines may appear when two or more melt fronts meet.

Flash

Excessive injection pressure or poor mould matching can create flash around the parting line.

Ejector Marks

Improper ejection design can leave visible marks or deform the part.

Dimensional Problems

Incorrect shrinkage assumptions can make the finished part difficult to assemble.

These problems should be considered during both product design and mould design.

HUAJI MOULD for Plastic Office Chair Components

HUAJI MOULD specializes in plastic injection moulds for furniture and office chair components.

Our mould experience includes:

• Office chair backrest moulds

• Chair seat moulds

• Armrest moulds

• Five-star base moulds

• Chair bracket moulds

• Plastic furniture moulds

• Other large plastic injection moulds

We work with materials including PP, ABS, PA6, PA66, glass fiber reinforced PP, HDPE and other engineering or furniture plastics.

For large chair components, our engineering team can use DFM and Moldflow analysis to evaluate the mould structure, material flow, cooling and possible warpage before mould manufacturing.

Our typical mould lead time is around 30–60 days, depending on mould size and complexity.

The goal is not simply to make a mould that can produce one good sample. The mould should provide stable dimensions, reliable assembly and consistent production quality during long-term manufacturing.

FAQ

What is the most common plastic used in office chairs?

PP is one of the most commonly used plastics for office chair components because it is lightweight, cost-effective and suitable for injection moulding.

Is PP strong enough for an office chair?

Standard PP can be suitable for many chair components. For higher-load applications, glass fiber reinforced PP or reinforced nylon may be considered.

What plastic is used for office chair bases?

Depending on the chair design, the base may use nylon, glass fiber reinforced nylon, reinforced PP or other structural materials.

Are office chair backrests made of plastic?

Many office chairs use plastic backrest frames. Ergonomic mesh chairs commonly combine a plastic frame with mesh fabric and other support components.

What is GFPP used for in office chairs?

GFPP is mainly considered for plastic components where greater stiffness, strength and dimensional stability are required, such as structural frames and some chair bases.

Conclusion

Plastic office chairs are normally made from a combination of materials rather than one type of plastic.

PP, ABS, nylon, glass fiber reinforced PP, TPE and polyurethane all have different advantages and can be used in different parts of an office chair.

For manufacturers, the best material depends on the component's load, structure, appearance, production volume and cost target.

For mould manufacturers, material selection is equally important because it affects shrinkage, warpage, cooling, gate design, surface texture and mould life.

Choosing the right material at the beginning can make the entire office chair manufacturing process more stable and easier to control.
