In high-volume consumer pet goods, the profitability of a product line hinges on the precision of its tooling. A single tooling flaw can halt mass production and erode margins. Approving a cat litter box mold without rigorous T1/T2 trial evaluation leads to downstream defects. You will encounter warped bases, misaligned covers, and surface blemishes. These issues cause assembly bottlenecks, consumer returns, and product hygiene failures. To mitigate these risks, product managers and procurement engineers must utilize a strict, dimension-based trial checklist. You must focus on flatness, fit, ejection mechanics, and surface quality before authorizing mass production. Skipping these validation steps guarantees defective parts will reach the assembly floor.

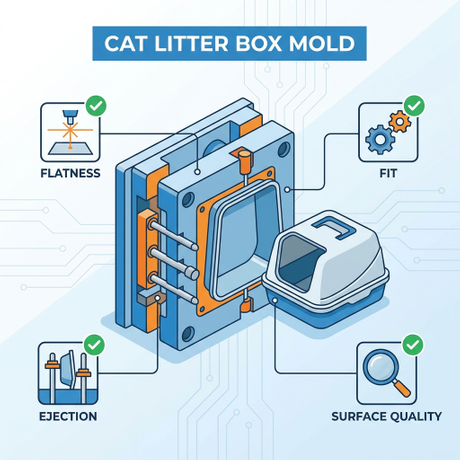

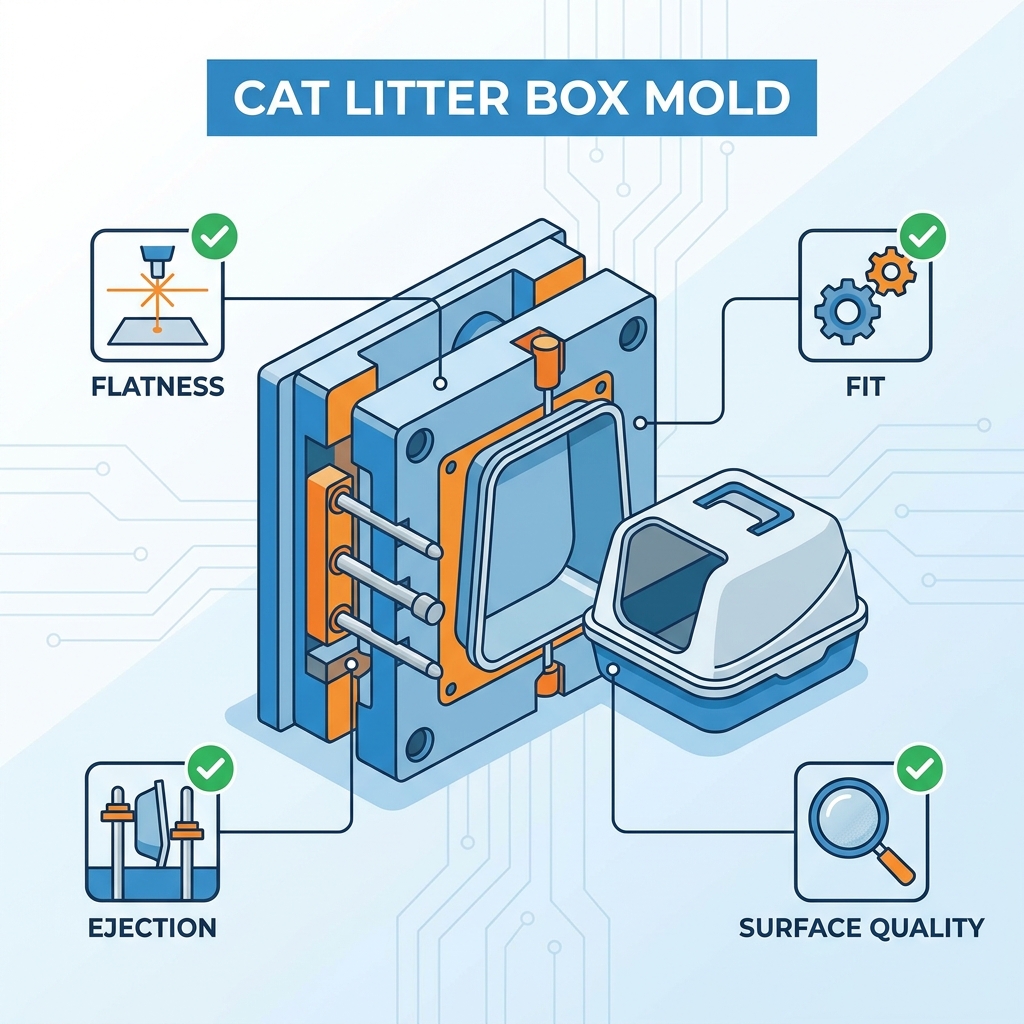

Flatness Dictates Functionality: Warpage in large, flat plastic components like litter box bases compromises floor stability and structural integrity, leading to assembly issues and pet rejection.
Precision Fit Prevents Leakage & Odors: Covered and sifting litter boxes require exact dimensional tolerances at mating seams to ensure secure assembly, contain dust, and prevent urine leakage.
Optimized Ejection Reduces Cycle Time: Proper draft angles, generous corner radii, and balanced ejector pin placement prevent drag marks and part deformation, directly impacting unit cost and production speed.
Surface Finish Controls Hygiene: Microscopic surface porosity from poor mold cavity polishing creates nesting grounds for bacteria and organic mold; high-polish SPI standards are essential for pet health.
Partner Selection is Critical: A competent pet product mold manufacturer will provide comprehensive inspection reports (ISIR), scientific molding data, and actionable tooling modification plans after the T1 trial.
The mold trial phase bridges the gap between digital CAD geometry and physical manufacturing reality. T1 (first shots) and T2 (refined shots) trials do not exist to produce a perfect part on the first cycle. Instead, they serve to identify correctable tooling parameters. Engineering teams use this time to validate mold flow analysis and establish a stable processing window. You must evaluate how the steel tool interacts with the chosen polymer under high injection pressures and elevated temperatures.
Common litter box materials include Polypropylene (PP), ABS, and post-consumer recycled plastics. Each exhibits distinct shrinkage rates and flow dynamics. Managing these material realities in large-cavity molds requires precise engineering. Uneven cooling or improper gate placement induces internal stresses. These stresses lead to post-molding deformation once the part ejects and cools to room temperature. Understanding thermal and rheological behaviors during the trial phase prevents extensive tool modifications later.
Mold-level decisions directly impact consumer satisfaction and pet health. Poor tooling design leaves sharp internal corners that trap soiled litter. This makes daily cleaning difficult for the end-user. Rough cavity surfaces harbor biological contaminants. Flimsy latch mechanisms fail during transport or daily use. The financial impact of approving a mold with unresolved micro-defects is severe. Increased scrap rates, extensive post-processing labor, and compromised brand reputation quickly outweigh the perceived savings of rushing the tooling approval process.
During a T1 trial, technicians monitor the melt flow index and gate freeze times. They adjust packing pressure to compensate for volumetric shrinkage. If the packing profile is incorrect, you will see sink marks on thick wall sections. The trial phase allows operators to dial in the exact holding pressure required to pack out the cavity without over-packing the gate area. Over-packing causes high residual stress, which manifests as cracking or severe warpage months later.
Cooling water flow rates also require validation during these initial shots. Technicians measure the gallons per minute (GPM) flowing through the cooling circuits. They check for turbulent flow, which is necessary for efficient heat transfer. If the flow is laminar, the mold will run hot, extending the cycle time and causing the plastic to warp upon ejection. Identifying these thermal management issues early allows toolmakers to add baffles or bubblers to hot spots before mass production begins.
A structured evaluation ensures all critical dimensions and functional requirements meet the specification before the tool is hardened or textured. You must inspect every physical attribute of the molded sample.
Inspect the base and large side panels for bowing, twisting, or sink marks. Flatness is non-negotiable for floor-standing pet products. Root causes of warpage typically include uneven cooling circuit design, improper gate location, or excessive packing pressure causing localized over-packing. The acceptance criteria should specify a maximum allowable deviation from a flat surface. For example, demand less than 1.5mm of deviation across a 500mm span. This ensures the box sits flush on hard floors without rocking. Rocking causes cat anxiety and leads to product refusal.
To measure flatness accurately, place the molded base on a certified granite surface plate. Use feeler gauges to check the gaps around the perimeter. If a 1.5mm feeler gauge slides under the base, the part fails the flatness check. You must then analyze the cooling layout. Often, the core runs hotter than the cavity, causing the plastic to shrink unevenly and bow towards the hotter side. Adjusting the coolant temperature differential between the core and cavity can sometimes correct minor warpage without cutting new steel.
Gate location also heavily influences flatness. Edge gates on a long rectangular part force the plastic to flow linearly, aligning the polymer chains. This orientation causes differential shrinkage parallel and perpendicular to the flow direction. If warpage persists, you may need to modify the tool to use a hot runner system with multiple valve gates. This allows for sequential filling, reducing flow length and minimizing orientation-induced warpage.
Test the mating surfaces between the base pan, snap-on rims, hoods, sifting layers, and integrated ventilation grates. Differential shrinkage, inadequate steel safe practices during mold cutting, or fluctuating injection speeds often cause fitment issues. The acceptance criteria demand seamless snap-fit engagement and zero gap tolerance for liquid and odor containment. Consistent wall thickness across mating edges is vital. Filter compartments and swinging doors must actuate smoothly without binding or requiring excessive force.
When evaluating snap fits, pay close attention to the undercut dimensions. The toolmaker should leave the steel slightly "safe" on the first trial. This means the undercut is machined smaller than the nominal CAD dimension. During the T1 review, you test the engagement force. If the snap is too loose, the toolmaker can easily remove more steel to increase the undercut depth. If they cut it too deep initially, fixing it requires welding, which compromises the tool's integrity.
Check the parting line mismatch around the perimeter of the assembled unit. A mismatch occurs when the core and cavity halves do not align perfectly. This creates a sharp step on the exterior of the product. The maximum allowable mismatch should be less than 0.1mm. Anything larger creates a dirt trap and looks visually unappealing. Mismatch usually indicates inadequate interlocking features on the mold base or worn guide pins and bushings.
Assess the molded part for stress marks, pin push marks, or drag scratches upon removal from the core. Insufficient draft angles on deep-draw sections, sharp internal corners, unbalanced ejector pin layouts, or inadequate mold release polishing hinder ejection. The goal is smooth, automated ejection without robotic or manual intervention. Expect zero stress whitening around ejector pin locations. Internal corners must feature generous radii to facilitate both part ejection and easy scooping for the end-user. This prevents wet litter from cementing in sharp crevices.
Stress whitening indicates the part is sticking to the core. This happens when the draft angle is too shallow for the specified surface texture. A high-gloss finish requires less draft than a heavy stipple texture. If you specify a textured interior, ensure the draft angle increases by 1.5 degrees for every 0.025mm of texture depth. Failing to account for this rule results in severe drag marks and part deformation during ejection.
Inspect the ejector pin marks on the underside of the base. The pins should be flush with the part surface, with a tolerance of +/- 0.1mm. If the pins push too deeply into the plastic, they create weak points. If they sit too proud, they interfere with the product's stability on the floor. Unbalanced ejection occurs when the pins do not actuate simultaneously or when there are too few pins to distribute the ejection force evenly. This causes the part to twist as it leaves the mold.
Examine all visible surfaces for flow marks, weld lines, sink marks, flash, and microscopic surface porosity. Suboptimal melt temperatures, poor venting, or inadequate cavity polishing degrade surface quality. Acceptance criteria require uniform texture, high gloss, invisible weld lines on structural stress points, and zero flash on parting lines. The surface must remain non-porous to prevent organic mold or bacteria from anchoring in microscopic crevices. This reduces urinary tract infection risks for pets.
Weld lines form where two flow fronts meet. In a litter box mold, this often happens around the handle cutouts or ventilation slots. While you cannot eliminate weld lines entirely, you can control their location and strength. Ensure the weld lines do not occur in high-stress areas, such as the snap-fit latches. Increasing the melt temperature or injection speed can improve the strength and appearance of the weld line by allowing the polymer chains to entangle more thoroughly.
Flash occurs when molten plastic escapes the mold cavity along the parting line or ejector pins. It indicates poor machining tolerances, inadequate clamping force, or excessive injection pressure. Flash on a pet product is unacceptable. It creates sharp edges that can injure the animal or the consumer. The toolmaker must spot the parting line using bluing ink to identify high spots and grind them flat until the mold seals completely under tonnage.
Assessing a manufacturer's diagnostic and engineering capabilities during the trial phase is just as important as inspecting the plastic parts. A capable partner relies on scientific molding data rather than trial-and-error adjustments. Expect the manufacturer to provide comprehensive data on fill time, cavity pressure, melt temperature, and cooling time. This data proves the process is stable and repeatable.
The T1 sample reporting process must include a detailed Initial Sample Inspection Report (ISIR). This document maps the physical dimensions of the trial parts against the original CAD model. It highlights deviations and proposes steel-safe corrections. Validate how the tool handles custom pet-safe resins, anti-microbial additives, and deodorizing masterbatches during the injection cycle to ensure consistent dispersion and performance.
Review the process setup sheet provided by the manufacturer. It should detail the exact machine parameters used during the trial. This includes barrel temperatures across all zones, screw RPM, back pressure, injection speed profiles, and holding pressure phases. If the manufacturer cannot provide this documentation, they are likely guessing at the setup. This lack of control leads to inconsistent part quality from run to run.
Observe the manufacturer's approach to troubleshooting. When a defect occurs, do they immediately adjust the machine settings, or do they analyze the root cause? A skilled engineer will check the mold temperature, verify the material moisture content, and inspect the venting before changing the injection profile. Methodical problem-solving indicates a reliable manufacturing partner.
Evaluation Metric | Standard Practice | Expert Manufacturer Practice |
|---|---|---|
Trial Documentation | Basic dimension check on a few critical areas. | Full ISIR with CMM data, process setup sheets, and thermal imaging. |
Defect Resolution | Adjusts machine parameters to hide tooling flaws. | Identifies root cause and modifies steel to fix the issue permanently. |
Cooling Analysis | Checks water flow visually. | Measures GPM, calculates Reynolds number, and verifies turbulent flow. |
Material Handling | Uses generic resin for trials. | Dries specific production resin to exact dew point specifications before molding. |
Large molds require extensive cooling channels. Inefficient cooling systems lead to extended cycle times, warpage, and increased unit costs. To mitigate this, request thermal imaging of the mold during the trial to verify uniform temperature distribution. Mandate conformal cooling inserts in hard-to-reach core sections if necessary.
Flash and short shots indicate inconsistent material flow. This causes incomplete parts or excess material at the seams. Verify clamping force calculations to ensure the machine can handle the projected area of the mold. Inspect venting placement on deep-draw ribs and ensure mold venting is adequately sized, strategically located, and free of blockages.
Venting depth is critical. For Polypropylene, vents should be cut to a depth of 0.015mm to 0.02mm. If the vents are too shallow, air gets trapped, causing diesel burns on the plastic. If they are too deep, the plastic flashes into the vent. During the trial, inspect the vents for residue buildup. Additives and colorants can off-gas and clog the vents, requiring frequent mold maintenance.
Another risk is core deflection. In deep-draw parts like litter box bases, high injection pressure can push the core pin off-center. This results in uneven wall thickness. One side of the box will be thick, while the opposite side will be dangerously thin. Measure the wall thickness at the base of the walls using ultrasonic gauges. If deflection occurs, the toolmaker must add interlocking features to stabilize the core during injection.
Verify clamping tonnage calculations against the projected area of the part.
Inspect all parting line vents for proper depth and width.
Measure wall thickness at the bottom of deep draws to check for core deflection.
Confirm the mold opens and closes smoothly without guide pin galling.
Check the sprue bushing radius against the machine nozzle radius to prevent leaks.
Balancing upfront tooling investment against long-term production efficiency and product lifespan requires careful analysis. You must evaluate the expected production volume and the abrasiveness of the chosen polymer.
Tooling Feature | Initial Cost Impact | Long-Term Production Benefit |
|---|---|---|
Hardened Steel (H13) | Higher material and machining costs | Longer tool life, better wear resistance against abrasive litters, superior surface finish retention. |
Pre-Hardened Steel (P20) | Lower initial investment | Suitable for lower volumes; faster wear, potential surface degradation over time. |
Hot Runner System | Significantly higher initial mold cost | Reduces material waste, improves cycle times, better pressure control. |
Cold Runner System | Lower initial mold cost | Generates regrind waste, slightly longer cycle times, higher injection pressure required. |
Beryllium Copper Inserts | High material cost | Exceptional heat transfer in hard-to-cool areas, drastically reducing cycle time. |
Evaluating whether the expected production volume justifies the cost of hardened steel or hot runner systems is vital. While hot runners increase the initial mold cost, the reduction in material waste and faster cycle times often yield a lower cost-per-part in high-volume scenarios. Cold runners generate massive sprues that must be ground up and re-melted. This degrades the polymer's mechanical properties over time.
Steel selection dictates the tool's lifespan. P20 steel is easy to machine and suitable for runs under 100,000 parts. However, if you use glass-filled polymers or abrasive additives, P20 will wear quickly. The parting lines will round off, causing flash. H13 steel, hardened to 50-52 HRC, withstands abrasive materials and maintains a sharp parting line for millions of cycles. It also holds a high-gloss SPI-A2 polish much longer than softer steels.
Consider the use of Beryllium Copper (BeCu) inserts in the core. The core of a litter box mold is notoriously difficult to cool because there is limited space for water channels. BeCu transfers heat much faster than standard tool steel. Placing BeCu inserts at the top of the core pulls heat away from the plastic rapidly, preventing warpage and shaving seconds off the cycle time.
A successful mold trial requires strict adherence to dimensional, functional, and aesthetic tolerances. Subjective approvals inevitably lead to mass production bottlenecks and retail failures. By enforcing a rigorous checklist, you protect product integrity and brand reputation. You must demand data-driven results from your tooling partner.
Download the complete technical trial checklist and distribute it to your quality control team.
Audit your current T1 samples against the flatness and fitment criteria outlined above.
Schedule a tooling review with your manufacturer to discuss cooling layouts and venting depths.
Require a full ISIR and process setup sheet before authorizing any steel modifications.
A: T1 is the first time plastic is injected into the new mold to check basic functionality, fill patterns, and identify major flaws. T2 occurs after initial tool corrections to verify dimensions, assembly fit, and surface finish against the final specifications.
A: Warpage typically results from uneven cooling rates across the part, improper gate locations causing internal stress, or packing the mold with excessive pressure. Adjusting the cooling circuit temperature or modifying the packing profile usually resolves this.
A: An SPI-A2 or A3 high-gloss finish is recommended for the interior base. This smooth, non-porous surface prevents waste adhesion, makes scooping easier, and stops bacteria or mold from anchoring in the plastic.
A: Draft angles are tapers applied to vertical walls. For deep litter boxes, sufficient draft is essential to allow the part to release from the mold core smoothly without scuffing or requiring excessive ejection force.
A: Proper venting allows trapped air to escape the cavity as molten plastic fills it. Inadequate venting causes short shots, burn marks on the plastic, and weak weld lines, compromising the structural integrity of the litter box.
A: Core deflection occurs when high injection pressure pushes the mold core off-center. This results in uneven wall thickness, making one side of the box weak and prone to cracking while the other side becomes unnecessarily thick and heavy.
