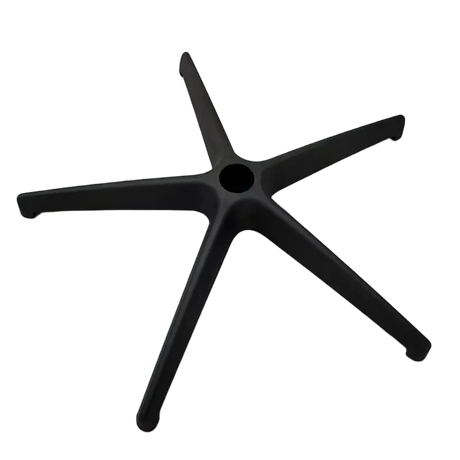

The five-star base is one of the most important structural components of an office chair. It supports the chair mechanism, casters, and user's weight, so material selection has a direct influence on the strength, durability, weight, and production cost of the final chair.
For manufacturers developing a new office chair, choosing the material should not be based only on material price. The chair's structure, expected load, production volume, appearance, assembly method, and target market should also be considered.
For plastic five-star bases, the material selection also has an important influence on the office chair five-star base mould.
Before selecting a material, the manufacturer should first define the working conditions of the chair.
Important factors include:
Required load capacity
Chair size and base diameter
Expected service life
Chair weight
Caster installation structure
Gas lift connection
Indoor or commercial application
Production volume
Material cost
Surface appearance
Injection molding requirements
A five-star base for a standard home office chair may have different requirements from a heavy-duty base designed for long working hours or commercial environments.
Therefore, the material should be selected together with the product structure and mold design.
Nylon is commonly considered for plastic structural components because of its good mechanical properties and relatively lightweight characteristics.
A nylon five-star base can provide a balance between strength, weight, and production efficiency when the product structure is properly designed.
For injection molding, the material's flow behavior, shrinkage, moisture sensitivity, and processing conditions need to be considered during mold development.
For a nylon chair base, the mold designer needs to pay attention to:
Wall thickness
Rib structure
Gate position
Cooling system
Ejection system
Material flow
Shrinkage and dimensional stability
These factors can affect the final strength and dimensional accuracy of the five-star base.
For applications requiring higher structural performance, manufacturers may consider reinforced engineering plastics, such as glass-fiber-reinforced nylon.
Compared with standard plastic materials, reinforced materials can provide different mechanical and dimensional characteristics. However, they also create additional considerations during injection molding.
Glass fibers can influence:
Material flow
Shrinkage
Warpage
Surface appearance
Mold wear
Gate design
Therefore, when designing a reinforced nylon five-star base mould, material selection and mold design should be developed together.
The rib layout and connection areas are particularly important because the five-star base needs to transfer loads between the central gas-lift connection and the five individual legs.
Aluminum is another option commonly used for office chair bases.
Compared with injection-molded plastic bases, aluminum bases can provide a different combination of rigidity, appearance, and weight.
They are often considered when the product positioning requires a more metallic appearance or a different structural design.
However, aluminum bases generally require different manufacturing processes from plastic injection molding. Therefore, manufacturers should consider the target production volume and overall product cost before selecting the material.
For high-volume plastic production, an injection-molded five-star base may offer advantages in terms of production efficiency and design flexibility.
Steel can also be used for chair bases where a strong metal structure is required.
Steel bases can provide high structural strength, but they may increase product weight and require different manufacturing and finishing processes.
When comparing steel with plastic, manufacturers should consider the complete chair structure rather than looking at material strength alone.
The final design should take into account:
Material + Product Structure + Connection Design + Manufacturing Process
This is particularly important for the five-star base because the central connection and five legs work together as one structural system.
When a plastic five-star base is selected, the injection mold becomes an important part of the product development process.
A five-star base usually has a relatively large overall size, multiple long branches, ribs, and a central connection area. These features make mold filling and cooling more challenging than simple plastic parts.
The mold design may need to consider:
The gate position affects how the molten plastic flows into the five branches of the base.
An appropriate gating solution can help achieve more balanced filling and reduce potential molding problems.
Ribs can improve structural strength without simply increasing the overall wall thickness.
However, excessive or improperly designed ribs can contribute to sink marks, warpage, or difficult filling.
Because the five-star base has a relatively large molded area, an effective cooling system is important for maintaining dimensional stability and controlling the production cycle.
The ejection system should provide stable removal of the molded part without damaging the ribs, connection areas, or visible surfaces.
For complex five-star bases, mold flow analysis can help evaluate filling behavior, weld lines, pressure, cooling, and potential deformation before mold manufacturing.
There is no single material suitable for every office chair five-star base.
A manufacturer can start with the following questions:
Requirement | Material consideration |
|---|---|
Lightweight chair | Plastic materials |
Standard office chair | Nylon or suitable engineering plastic |
Higher structural requirements | Reinforced engineering plastic |
Metallic appearance | Aluminum |
Heavy metal structure | Steel |
High-volume plastic production | Injection molding materials |
Complex rib structure | Material and mold flow should be evaluated together |
The final choice should be based on the actual chair design, required performance, production process, and target cost.
For a new office chair project, it is better to confirm the material before finalizing the mold structure.
The material affects important mold parameters such as:
Shrinkage
Gate design
Cooling layout
Injection pressure
Mold temperature
Ejection design
Warpage control
Surface finish
This is why experienced mold manufacturers normally need the product design and material information before starting detailed mold design.
For example, a five-star base made from standard plastic and one made from glass-fiber-reinforced plastic may require different considerations during mold development.
Choosing the right material for an office chair five-star base requires a balance between strength, weight, durability, cost, appearance, and manufacturing requirements.
Nylon and reinforced nylon can be considered for plastic injection-molded chair bases, while aluminum and steel provide alternative solutions for different product designs and market requirements.
For plastic five-star bases, material selection should be considered together with product structure, mold flow, cooling, gating, ribs, and ejection design.
