Procuring a monoblock chair mould is never a simple tooling purchase. Instead, it serves as a critical capital investment permanently locking in your unit economics. Every design choice echoes through millions of production cycles. Procurement and engineering teams constantly face a core tension. They must balance initial upfront tooling costs against long-term operational metrics. Key variables like injection cycle time, final resin weight, and logistical stackability demand meticulous attention.
This article provides an objective, data-backed framework for evaluating mould design. You will learn how to accurately calculate unit amortization and manage precise lead-time expectations. We outline exactly what criteria matter before you issue an RFQ to a monoblock chair mould manufacturer. Ultimately, mastering these elements ensures your plastic furniture production remains highly profitable and competitively priced in global markets.
Cycle Time is King: Reducing injection cycle time to under 60 seconds yields higher ROI than saving on initial tooling material.
Amortization Over Price: A $60,000 mould producing 1,000,000 units is infinitely more profitable than a $20,000 mould that fails at 150,000 units or causes excessive machine downtime.
Logistics Start at DFM: Proper Design for Manufacturability (DFM) determines stackability, which directly impacts global shipping and storage costs per chair.
Validation is Non-Negotiable: Reliable manufacturers perform continuous 24-hour simulation runs before shipment to eliminate client-side troubleshooting.

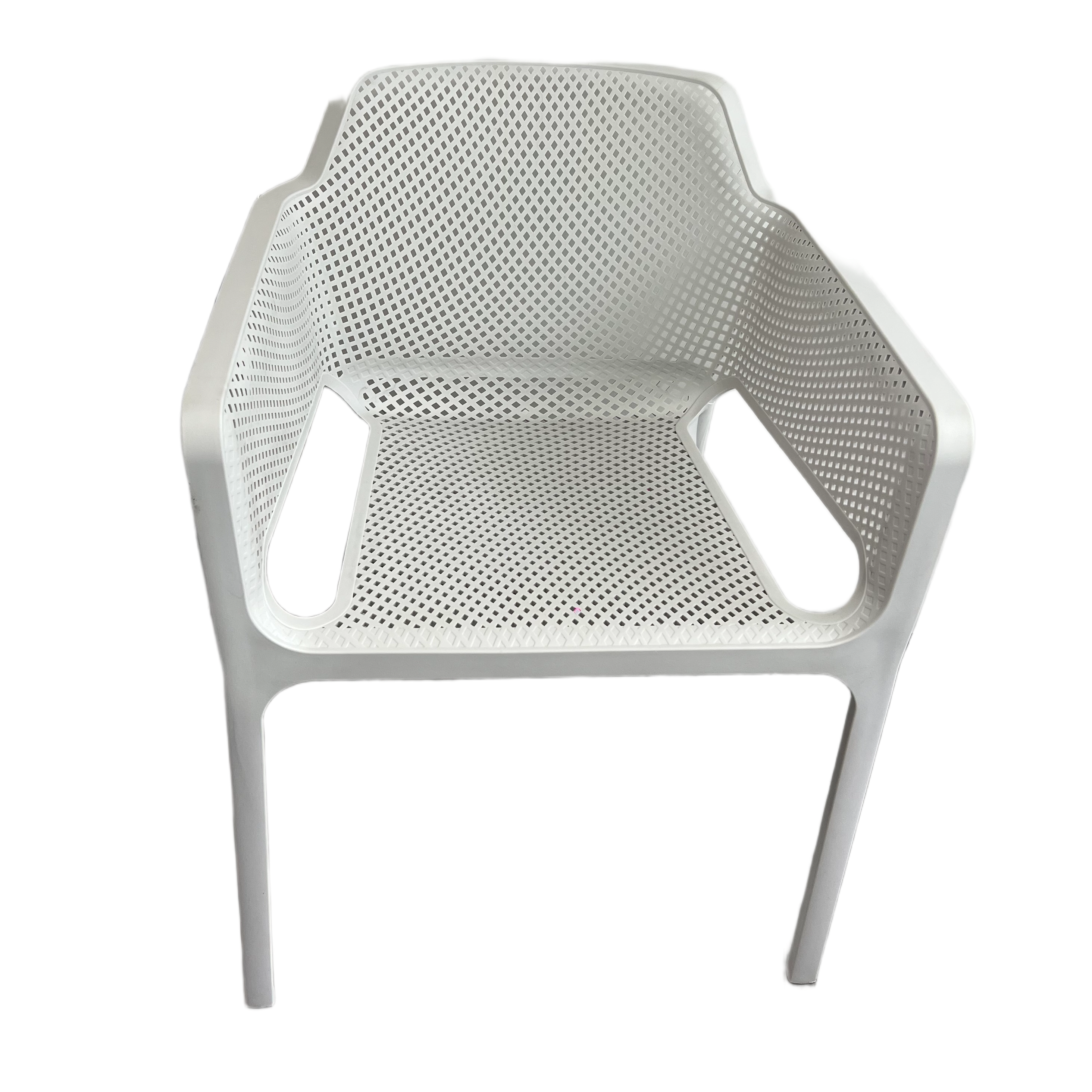

Structural innovation determines the success of plastic furniture. Engineers constantly battle to reduce material weight without sacrificing load-bearing integrity. We generally target a finished weight of under three kilograms for a standard chair. Achieving this requires clever geometric solutions.
You will often see eggshell designs and C-section legs in modern models. An eggshell curve distributes user weight evenly across the surface. C-section profiles in the chair legs resist bending moments far better than flat ribs. These choices strip away unnecessary plastic. Less plastic means faster cooling, cheaper part costs, and a lighter final product.
Extensive moldflow simulation remains an absolute necessity. You cannot guess how molten plastic behaves inside large cavities. Software simulation visualizes shear stress, weld lines, and potential sink marks before anyone cuts steel.
Achieving an optimal cycle time relies directly on this analysis. We typically aim for 50 to 90 seconds, depending heavily on chair size. Pushing the cycle time lower requires flawless cooling channel design. Engineers use conformal cooling to wrap water lines tightly around complex contours. Gate placement also plays a massive role. You must decide early between hot and cold runner systems. Hot runners cost more upfront but eliminate sprue waste and speed up injection phases.
Many buyers forget logistics during the design phase. Draft angles and surface transitions serve two purposes. First, they allow clean ejection from the mould cavity. Second, they dictate how tightly finished chairs stack together.
Proper DFM ensures maximum vertical stacking. If your design permits stacking 24 or more chairs per standard pallet, you compress freight costs significantly. Poorly engineered draft angles create vapor locks between stacked chairs. Customers hate struggling to pull chairs apart. We engineer micro-gaps into the surface transitions specifically to prevent this vacuum effect, ensuring easy handling and dense shipping.
Material selection drives the largest portion of your upfront quote. The Society of Plastics Industry (SPI) classifications offer a reliable benchmark for expected lifespans.
Mid-Volume (P20 Steel): This option typically handles 300,000 to 500,000 shots. It offers a lower upfront cost. P20 works perfectly for standard household chairs or regional market launches where demand remains stable but moderate.
High-Volume (H13 / S136 Hardened Steel): Hardened steel easily guarantees 800,000 to over 1,000,000 shots. It costs more but represents essential protection for continuous commercial production. Hardened steel prevents parting line wear, completely eliminating flash defects over time.
We must transparently unpack the hidden costs of toolmaking. Raw steel only accounts for a fraction of the price. You pay heavily for engineering expertise and machine time. DFM engineering rates often run between $100 and $250 per hour globally.
Precision machining adds up quickly. Cutting a massive chair cavity requires large-scale CNC mills. Basic 3-axis CNC machining handles roughing operations cheaply. Complex textures or deep ribs demand expensive 5-axis CNC time. Furthermore, sharp corners and intricate details require Electrical Discharge Machining (EDM). Every hour on an EDM sinker machine drives the baseline cost higher.
You cannot evaluate a quote without understanding unit cost amortization. You must contrast the fixed cost of the tooling against your variable costs. Variable costs include your specific resin choice, hourly machine rates, and factory labor.
Consider the break-even point carefully. Injection molding typically requires minimum production volumes of 10,000 units to justify the capital expenditure. Once you pass that threshold, the math shifts aggressively in your favor. High upfront costs vanish as volume scales.
Tooling Grade | Initial Investment | Expected Lifespan (Shots) | Amortized Tool Cost Per Chair |
|---|---|---|---|
Standard P20 Steel | $25,000 | 300,000 | $0.083 |
Hardened H13 Steel | $60,000 | 1,000,000 | $0.060 |
Notice how the more expensive tool actually delivers a 27% cheaper amortized cost per unit over its total lifespan.
A beautifully designed tool means nothing if it mismatches your injection molding machine. Chair molds demand massive clamping forces due to their large projected surface areas.
Children's chairs: These smaller items require injection machines rated for 250 to 500 Tons.
Standard monoblock chairs: Adult-sized domestic chairs need significant pressure, usually demanding 600 to 1000 Tons.
Heavy-duty/Outdoor lounge chairs: Complex armchairs or thick outdoor variants push requirements to 800 to 1300+ Tons.
Material choice radically alters design constraints. You cannot simply swap plastics mid-project without facing dimensional failures.
Standard Polypropylene (PP) remains the industry favorite. It offers high flow rates and highly cost-effective bulk pricing. However, premium markets increasingly demand Modified PP or Polycarbonate (PC). These stiffer materials require completely different shrinkage rate calculations during the CAD phase. If you machine the cavity for standard PP and inject PC, the final chair will warp.
Additives also change the physical rules of injection. Mixing fiberglass, talc powder, or UV masterbatches into your resin strengthens the final product. Unfortunately, these additives act like sandpaper. They rapidly increase wear on the machine screw and the mould cavities. Running high glass-fiber content necessitates specifying harder tooling steels like H13.
Patience plays a vital role in successful procurement. Do not trust suppliers promising unrealistic speed. A standard monoblock tool requires 1.5 to 2.5 months (roughly 45 to 75 days) from concept approval to the first trial sampling (T1).
Massive blocks of steel take time to cut, harden, and polish. Rushing the process guarantees poor cooling channel alignment or uneven surface finishes. You must build this buffer into your product launch timeline.
Professional tooling facilities follow a rigid standard operating procedure. This workflow eliminates costly revisions.
3D Part Approval: Client and engineers finalize the precise chair geometry.
Mould Drawing: Engineers map cooling lines, ejector pins, and runner systems.
Rough Machining: CNC machines rapidly carve the general shape into raw steel.
Heat Treatment: Steel undergoes thermal baking to achieve target hardness.
Finish Machining: High-speed CNC and EDM refine dimensions to exact tolerances.
Assembly: Technicians fit sliders, guide pins, and hot runner manifolds together.
T1 Sampling: The tool runs its very first plastic shots for dimensional review.
Modification: Technicians polish textures and tweak dimensions based on T1 flaws.
Final Approval: The client signs off on perfect sample chairs.
You must enforce strict pre-shipment simulation. A trustworthy supplier will run the newly assembled tool continuously for 24 hours. They do this to stress-test cooling efficiency and verify ejection reliability.
Heat accumulation causes steel to expand slightly during long production runs. A tool might perform perfectly for ten shots but seize up on the hundredth. The 24-hour test forces thermal equilibrium. Catching a sticking ejector pin at the factory saves weeks of delay at your own facility.
We strongly warn against evaluating suppliers solely on bottom-line quotes. The plastic injection industry harbors many hidden shortcuts. A significantly cheaper quote usually acts as a red flag. It indicates softer steel alloys, insufficient internal cooling lines, or completely skipped DFM stages.
If a supplier underquotes your project by forty percent, they will likely recover their margin by rushing the polishing phase or downgrading the hot runner system. You will pay for their discount through daily machine downtime.
Look for partners who proactively challenge your part design. The best engineers tell you when your draft angles will fail. They always request Estimated Annual Usage (EAU) data before recommending a steel grade. They do not assume you want the cheapest option.
Furthermore, demand detailed tooling charts alongside the financial quote. A professional proposal specifies exact steel brands (e.g., ASSAB or LKM), hot runner brands (e.g., YUDO or Husky), and precise cavity counts. Vague proposals lead to unpredictable outcomes.
Procurement teams must prepare thoroughly to get an accurate quote. Send the following data package to your shortlisted candidates:
3D CAD Files: Provide STEP or IGS files. PDFs or basic sketches do not allow accurate moldflow analysis.
Specific Resin Choices: Name the exact polymer and any expected additives (e.g., 20% Glass Fiber PP).
Target Cycle Time: State your operational requirement (e.g., "Must achieve sub-60 seconds").
Injection Machine Specs: List your available machine tonnage, tie-bar spacing, and shot capacity.
Surface Finish: Specify SPI texture requirements or Pantone color expectations.
The upfront cost and manufacturing lead time of a massive injection tool often intimidate buyers. However, these factors remain secondary to long-term performance. Your primary goal is acquiring a tool capable of producing lightweight, highly durable, and easily stackable chairs at the lowest possible cycle time.
We encourage decision-makers to prioritize robust DFM practices above all else. Invest in high-grade hardened steel if you plan for long commercial runs. Partner exclusively with manufacturers who enforce transparent testing protocols, particularly the 24-hour continuous validation run.
Audit your current CAD designs today. Check them for proper draft angles and optimized wall thicknesses. Gather your production data and request a customized tooling amortization analysis to see exactly where your breakeven point lies.
A: Generally, you need 10,000+ units. Injection tooling demands high upfront capital. Anything less makes vacuum forming, urethane casting, or alternative manufacturing methods more viable financially. Once you cross this volume threshold, the amortized cost per part drops drastically.
A: Typically, it lasts for 300,000 to 500,000 shots if maintained properly. Consistent lubrication and clean cooling water extend its life. However, abrasive additives like glass fiber or talc will reduce this lifespan, eroding the cavity and causing flash defects.
A: Yes, but recycled materials can negatively affect shrinkage rates and structural integrity. The melt flow index varies between recycled batches. Engineers must design the tool's gate and runner system specifically to accommodate these varying flow characteristics.
A: Large surface areas are highly prone to warpage, visible weld lines, and uneven cooling. Moldflow simulation scientifically identifies these exact defects before any steel is cut, allowing engineers to correct wall thicknesses and relocate cooling channels proactively.
