Are Plastic Chairs Injection Moulded? | Chair Injection Mold Guide for Buyers 2026

Introduction

Yes — most modern plastic chairs are injection moulded.

From office chairs to stackable outdoor seating, injection molding is the most widely used manufacturing method. It enables manufacturers to produce durable, lightweight, and cost-effective plastic chairs at scale.

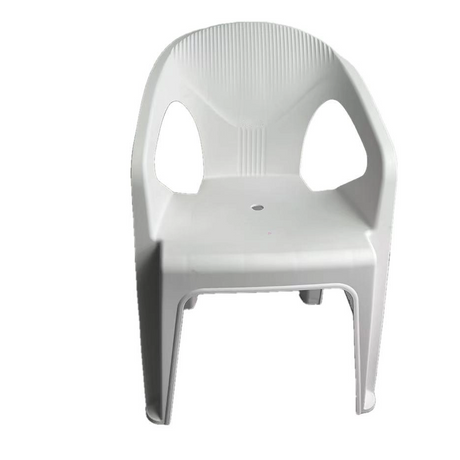

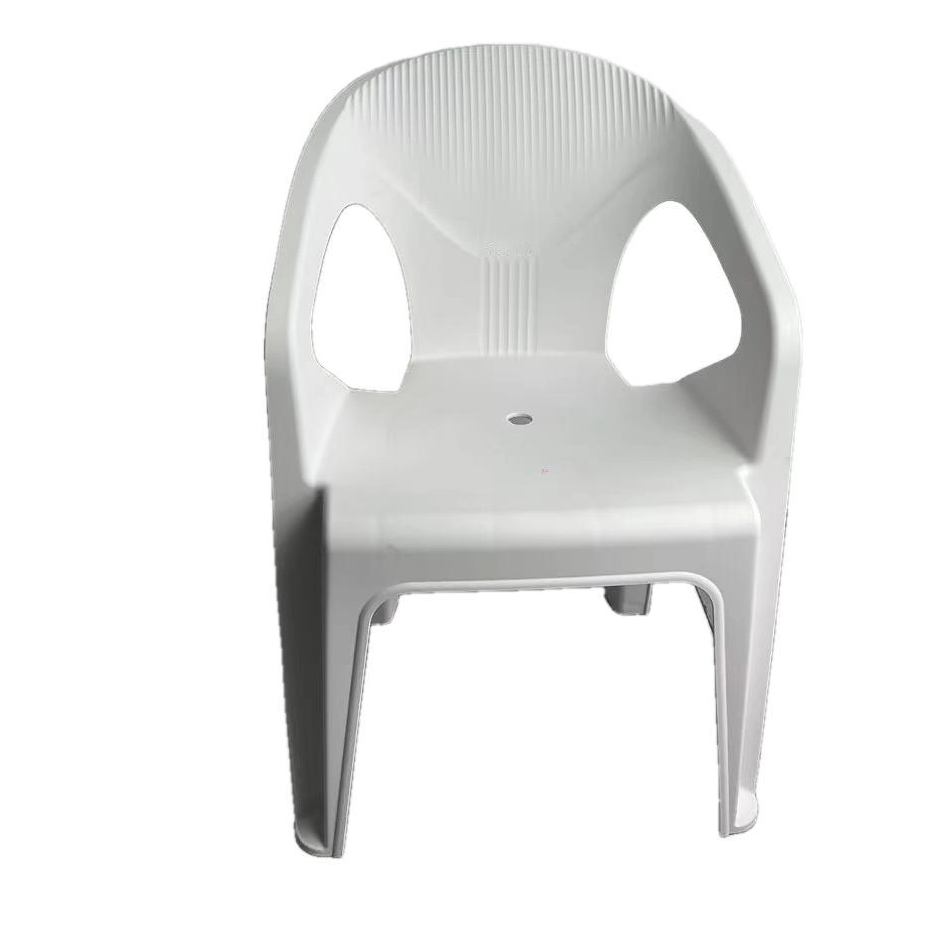

Below is a typical example of a monoblock plastic chair, produced in a single injection molding cycle:

Plastic Chair

A typical monoblock plastic chair produced by injection molding, featuring reinforced ribs and a one-piece structure for high strength and durability.

However, the real difference between a standard product and a high-performance chair lies in the chair injection mold design, cooling system, and processing technology.

If you are sourcing chairs or investing in a plastic chair mold, understanding these factors is essential.

Key Takeaways

• Injection molding is the main process for plastic chair production

• Chair mold design directly affects strength, appearance, and cycle time

• Cooling efficiency determines production cost and product quality

• Poor mold design leads to warpage, shrinkage, and structural defects

• Choosing a professional chair mold manufacturer is critical

How Plastic Chairs Are Manufactured

1. Injection Molding Process Overview

Plastic chairs are typically made using thermoplastics such as:

• Polypropylene (PP)

• High-Density Polyethylene (HDPE)

The injection molding process includes:

1. Heating plastic pellets to a molten state

2. Injecting the material into a plastic chair mold cavity

3. Cooling and solidifying the structure

4. Ejecting the finished chair

For monoblock plastic chairs, the entire chair is formed in a single molding cycle—exactly like the product shown above.

Why Injection Molding Is Used for Chairs

Mass Production Efficiency

Injection molding allows:

• High-volume production

• Consistent product quality

• Reduced per-unit cost

This is why injection molded chairs dominate markets such as Southeast Asia, the Middle East, and South America.

Design Flexibility

Modern chair molds support:

• Ergonomic shapes

• Stackable designs

• Lightweight reinforced rib structures (visible under the seat and back)

Structural Strength

A well-designed injection mold for chairs ensures:

• Uniform material flow

• High load-bearing strength

• Long service life

The Critical Role of Cooling in Chair Molds

Cooling is the most important factor in injection molding.
It typically accounts for 60–70% of the total cycle time.

Poor cooling design can lead to serious manufacturing issues.

Cycle Time Optimization

Example:

• Total cycle time: 120 seconds

• Cooling time: 80 seconds

A 10% improvement in cooling efficiency can significantly increase production output and reduce costs.

Common Defects Caused by Poor Cooling

• Warping → uneven chair legs

• Shrinkage marks → poor surface quality

• Weak joints → structural failure

• Seat deformation → reduced comfort

Structural Risks

Plastic chairs must withstand repeated load.

Uneven cooling creates internal stress, which can cause:

• Cracking

• Bending

• Long-term durability issues

Chair Mold Cooling Technologies

1. Standard Cooling Channels

• Suitable for flat surfaces

• Cost-effective but limited for complex shapes

2. Baffle & Bubbler Systems

• Used for deep ribs and thick sections

• Improve cooling efficiency in structural areas

3. Conformal Cooling

• Channels follow product geometry

• Ideal for complex ergonomic chair designs

Limitations:

• Higher cost

• Requires controlled water quality

4. High Conductivity Inserts (BeCu)

• Used in tight areas and joints

• Improve localized heat transfer

Injection Molding vs Other Manufacturing Processes

Injection molding remains the only reliable method for high-quality plastic chairs.

How to Choose a Chair Mold Manufacturer

1. Engineering Capability

• Moldflow analysis

• Cooling system simulation

• Structural validation

. Mold Quality

• Steel selection (P20, 2738, H13)

• Precision machining

• Surface finishing

3. Cooling System Design

Ask suppliers:

• Is the cooling balanced?

• Are there hot spots?

• What is the cycle time?

4. Testing & Validation

Ensure the supplier provides:

• Mold trial testing (T1)

• Sample confirmation

• Dimensional inspection reports

Business Impact of a High-Quality Chair Mold

A well-designed mold provides:

• Faster production cycles

• Lower manufacturing costs

• Stable product quality

• Reduced defect rate

A poorly designed mold leads to:

• Frequent maintenance

• Product rejection

• Customer complaints

Conclusion

So, are plastic chairs injection moulded?

Yes — and the mold determines everything.

Injection molding is not just a process—it is a complete engineering system involving design, cooling, materials, and precision manufacturing.

For long-term success in the global furniture market, investing in a high-quality plastic chair mold is essential.

FAQ

Q1: Are all plastic chairs injection moulded?

Most commercial plastic chairs are injection moulded, especially office and monoblock chairs.

Q2: What material is best for plastic chairs?

Polypropylene (PP) is widely used due to its strength and flexibility.

Q3: How long does it take to make a chair mold?

Typically 45–70 days depending on design complexity.

Q4: What is the lifespan of a plastic chair mold?

Usually between 300,000 and 1,000,000 cycles.

Q5: What affects chair quality the most?

Cooling system design and mold precision are the key factors.
