Snap-fit assembly is a fastening method that allows two plastic parts to connect without screws, bolts, or adhesives. One part contains a flexible feature that bends during assembly and then returns to its original shape, locking into the matching component.
Today, snap-fit assembly is one of the most widely used joining methods in injection molded plastic products. It helps manufacturers reduce production costs, simplify assembly, and create products with a cleaner appearance.
From office chairs and household furniture to automotive interiors, consumer electronics, and medical devices, snap-fit structures are found in thousands of products used every day.
The working principle is surprisingly simple.
When the two plastic components are pressed together, the flexible hook or arm temporarily bends because of the assembly force. Once it passes over the locking edge, the plastic feature springs back to its original position and securely holds both parts together.
The connection remains stable during normal use but can also be designed for repeated assembly and disassembly if maintenance is required.
Because no additional hardware is needed, assembly becomes much faster than traditional fastening methods.
The process usually takes only a few seconds and can be completed manually or automatically on a production line.
Manufacturers continue to replace screws and metal fasteners with snap-fit designs because they offer several practical advantages.
Workers simply press the parts together.
No screwdrivers, rivets, glue, or welding equipment are required, significantly reducing assembly time.
Although the mold design is more complex, the final product contains fewer components.
Manufacturers save money by eliminating screws, inserts, washers, and additional labor.
Without exposed screws, the product looks cleaner and more modern.
This is especially important for office furniture, home appliances, and consumer products where appearance affects purchasing decisions.
Replacing metal fasteners with integrated plastic structures reduces overall product weight.
For furniture manufacturers producing thousands of chairs every month, even small weight reductions can lower shipping costs.
Snap-fit assembly works well with robotic assembly systems, making it ideal for high-volume manufacturing.

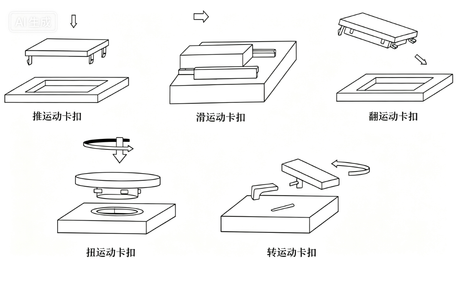

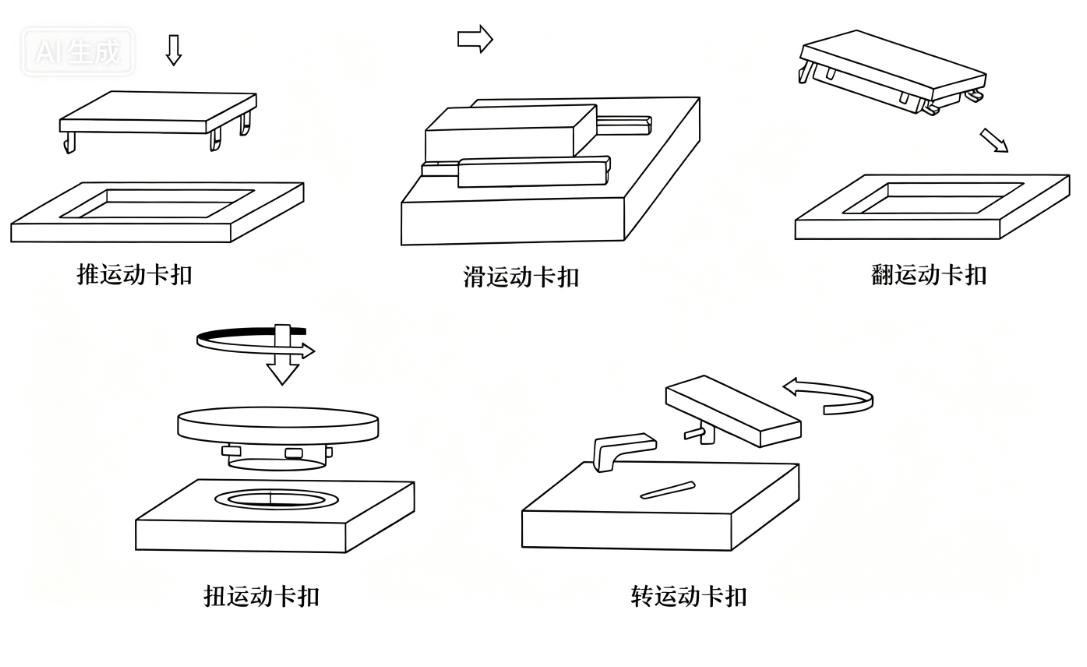

Different products require different snap-fit structures.
The most common designs include the following.
The cantilever snap fit is the most popular design used in plastic injection molding.
A flexible arm extends from one component and locks into a receiving slot.
It is commonly used in:
Office chair backrests
Plastic housings
Storage boxes
Electronic enclosures
Household products
Its simple structure makes it easy to manufacture while providing reliable performance.
Annular snap fits are designed for circular components.
The connection forms a complete ring around the part.
Typical applications include:
Bottle caps
Plastic containers
Pipe fittings
Medical products
This design provides uniform holding force around the entire circumference.
The U-shaped design offers greater flexibility than a straight cantilever.
It is suitable when additional movement is required during assembly.
This structure is often used for larger plastic components that experience repeated installation and removal.
Instead of bending, this design twists during assembly.
It is commonly found in products that require repeated opening and closing, such as battery covers or service access panels.
Material selection has a major influence on snap-fit performance.
Different plastics provide different levels of flexibility, strength, and fatigue resistance.
Common materials include:
Material | Characteristics | Typical Applications |
|---|---|---|
PP | Excellent flexibility and fatigue resistance | Furniture, storage products |
ABS | High rigidity and dimensional stability | Office equipment, electronics |
PA (Nylon) | High strength and wear resistance | Industrial components |
POM | Low friction and high precision | Mechanical assemblies |
PC | High impact resistance | Durable consumer products |
Among these materials, polypropylene (PP) is one of the most widely used for snap-fit designs because it can bend repeatedly without cracking.
A successful snap-fit design depends on more than just the shape of the hook.
Several engineering factors should be considered during product development.
Walls that are too thick increase assembly force.
Walls that are too thin may break after repeated use.
Uniform wall thickness helps reduce internal stress and improves molding quality.
Sharp internal corners create stress concentration.
Adding generous radii distributes stress more evenly and increases service life.
Proper draft angles allow parts to release smoothly from the mold.
They also reduce scratches on visible surfaces.
The insertion force should not be too high.
Products that require excessive force may damage components during assembly or make manual installation difficult.
Engineers usually verify assembly force through simulation software before mold manufacturing begins.
Even a well-designed snap-fit can fail if mold dimensions are inaccurate.
Small dimensional deviations may cause loose connections or excessive insertion force.
Precision machining and careful mold adjustment are essential for consistent production.
Snap-fit assembly is widely used in modern office chair production.
Common applications include:
Plastic backrest covers
Armrest covers
Decorative trim panels
Seat shell assemblies
Lumbar support covers
Cable management covers
Plastic side covers
Adjustable mechanism housings
Compared with traditional screw assembly, snap-fit connections shorten assembly time and improve production efficiency.
They also make future maintenance easier because certain parts can be removed without damaging the product.
Even experienced manufacturers occasionally encounter snap-fit issues.
Below are several common problems and practical solutions.
Problem | Possible Cause | Solution |
|---|---|---|
Hook breaks during assembly | Material too brittle or arm too short | Increase flexibility or change material |
Parts feel loose | Locking depth too shallow | Optimize snap geometry |
Assembly force is too high | Excessive interference | Reduce interference dimensions |
White stress marks appear | Sharp corners or excessive deformation | Increase radii and reduce bending stress |
Snap-fit wears out after repeated use | Material fatigue | Choose materials with better fatigue resistance |
Early product testing helps identify these issues before mass production.
The performance of a snap-fit assembly depends not only on product design but also on mold quality.
A high-precision injection mold provides:
Consistent snap-fit dimensions
Stable locking performance
Smooth surface finish
Reduced flash around locking features
Better dimensional repeatability
Longer mold service life
Lower maintenance costs
Modern mold manufacturers often combine Moldflow analysis, CNC machining, EDM processing, and precision inspection to ensure every snap-fit feature is produced accurately.
For products with complex assembly structures, mold optimization during the design stage can prevent many production problems later.
Snap-fit assembly has become one of the most efficient methods for joining plastic components. It reduces production costs, shortens assembly time, and creates products with a clean, professional appearance.
However, achieving reliable snap-fit performance requires careful attention to product design, material selection, and injection mold precision. A well-designed snap-fit should assemble smoothly, lock securely, and maintain its performance throughout the product's service life.
For manufacturers of office chairs, furniture, consumer products, and industrial plastic components, investing in proper snap-fit engineering and high-quality molds leads to more efficient production, fewer assembly issues, and better overall product quality.
Not always. Screws generally provide higher clamping force, but well-designed snap-fit joints are strong enough for many plastic products while offering faster assembly and lower costs.
Yes. Many snap-fit designs are intended for repeated assembly and disassembly, although the number of cycles depends on the material and structural design.
Polypropylene (PP) is widely used because of its excellent flexibility and fatigue resistance. Nylon (PA) and POM are also popular for applications requiring higher mechanical strength.
Absolutely. Even slight dimensional variations can change the insertion force or locking performance. Precision mold manufacturing is essential for consistent assembly.
