Anyone who has worked in injection molding production knows that a successful mold trial does not always guarantee smooth mass production. Sometimes the first few batches look perfect but after the mold runs continuously for several days small quality issues begin to appear. These may include slight surface dents minor deformation or incomplete filling at certain areas. In plastic manufacturing such situations are actually quite common.
Sink marks are one of the most typical molding defects. They usually appear near ribs bosses or thicker wall sections especially in large plastic parts.
In many factories the first reaction is to increase packing pressure. However practical production experience shows that if cooling channels are too far from critical areas simply increasing pressure does not always bring stable improvement. Optimizing the cooling layout inside the mold often provides a more reliable solution.

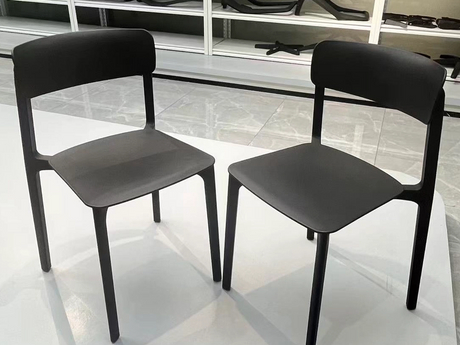

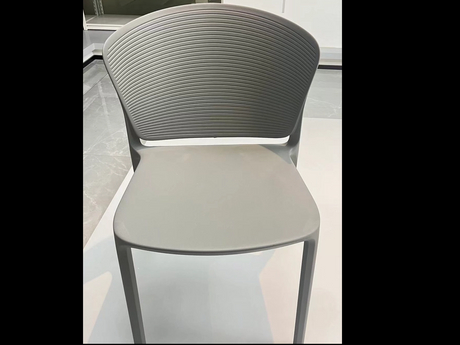

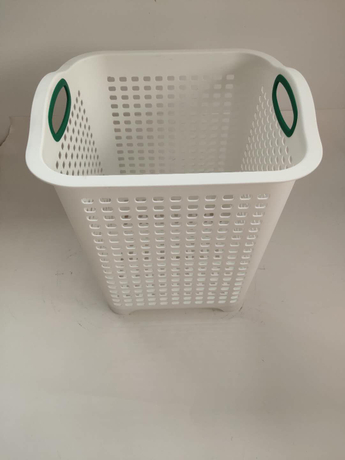

Warpage is another common challenge particularly for large products such as plastic chairs storage boxes or outdoor furniture components.
A molded part may look acceptable right after ejection but after standing for some time it may start to twist slightly or become unstable when stacked. This is usually caused by uneven cooling and shrinkage in different areas of the product. By adjusting gate position to achieve more balanced material flow and maintaining stable mold temperature deformation risk can be significantly reduced.
Short shot problems often occur at the far end of the flow path or in thin wall sections.
Operators may try to increase injection speed to solve the issue but if the runner design is too restrictive or flow resistance is high the improvement may be limited. In many cases enlarging runner dimensions slightly or improving venting depth can lead to more stable filling performance.
Flash may gradually appear after a mold has been running for a long period.
At the beginning of production the parting line usually remains clean and sharp. As the mold experiences wear small burrs may begin to form along product edges. This increases trimming work and may indicate insufficient mold rigidity or clamping support. Using wear resistant mold materials and strengthening parting line design can help extend mold service life.
Weld lines are frequently seen around holes inserts or complex structural regions in injection molded products.
If a weld line is located in a load bearing zone the product may have a higher risk of cracking during long term use. In practical production slightly changing gate direction or increasing melt temperature can sometimes improve bonding strength significantly.
Importance Of Mold Engineering Optimization
From an overall production management perspective investing more time in mold engineering optimization during the development stage is usually more cost effective than making repeated machine adjustments after mass production begins.
A mold with balanced cooling stable filling behavior and durable structural design not only improves product quality but also helps maintain a smoother production rhythm. This is particularly important for factories handling export orders with tight delivery schedules.
If you are currently facing similar injection molding quality or production stability challenges it may be helpful to review the mold design cooling layout and overall production strategy from an engineering perspective.
With proper mold optimization many common defects such as sink marks warpage short shot or flash can be significantly reduced improving both product consistency and manufacturing efficiency.

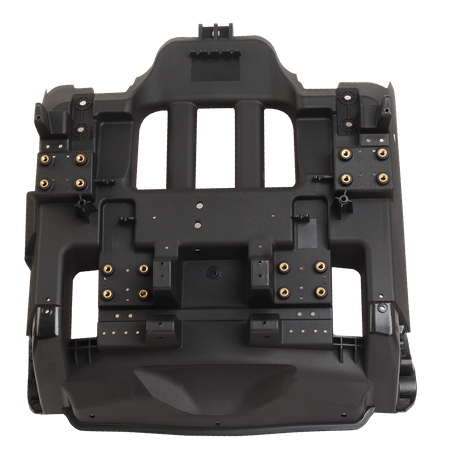

HUAJI MOULD has accumulated practical project experience in plastic chair molds daily use product molds and large structural plastic parts for mass production applications. Our engineering team is familiar with real factory production environments and can provide solution oriented technical suggestions based on specific product requirements.
If you would like to discuss your current molding project mold improvement plan or new product development feel free to contact our team for further technical communication. Early engineering evaluation often helps reduce long term production risks and overall manufacturing costs.
